KinetiMax 125 01|02|03 HPD Series

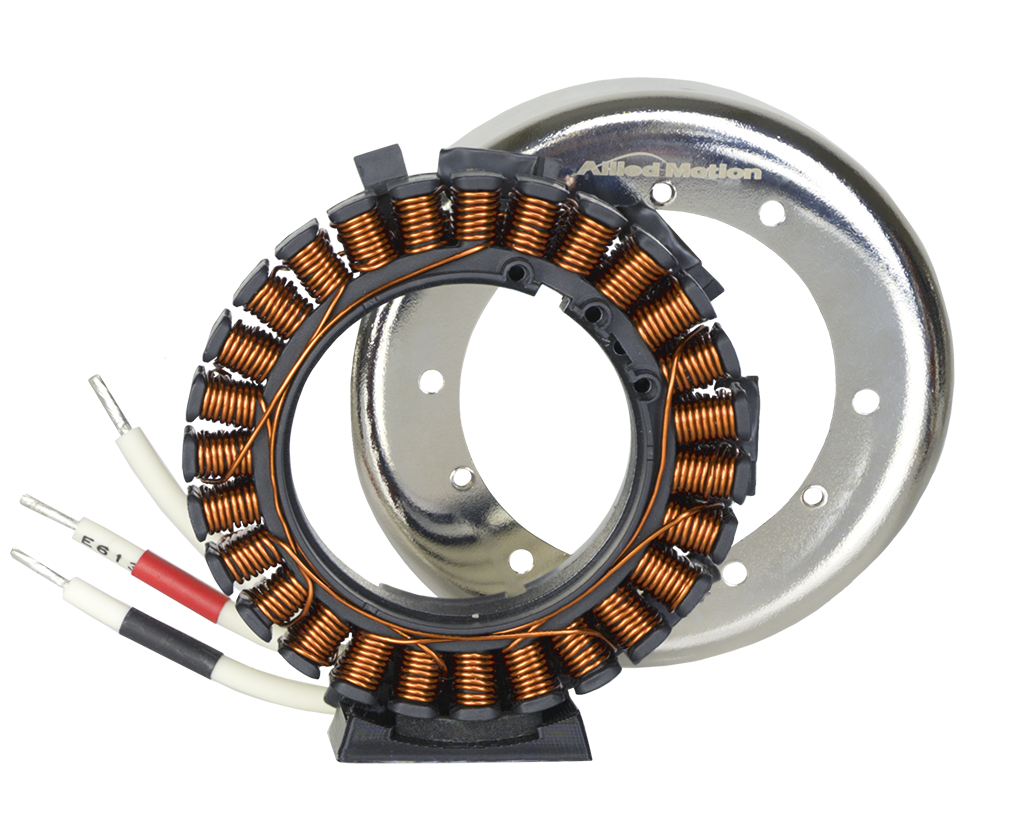

Outer-rotor brushless DC motor available in three stack-lengths

KMF 125 01

Frame Size: 125.2 mm
Length: 33.5 mm
Motor Voltage: 30 to 72 VDC
Rated Torque: 2.29 Nm
Rated Speed: 3,000 rpm
Rated Current: 20.5 to 3.0 A
Output Power: 719 W
Options: Hall commutation sensor board/Temperature sensor board/ Smaller rotor inner centering diameter/

KMF 125 02

Frame Size: 125.2 mm
Length: 46.0 mm
Motor Voltage: 42 to 72 VDC
Rated Torque: 4.40 Nm
Rated Speed: 2,150 rpm
Rated Current: 20.5 to 2.9 A
Output Power: 991 W
Options: Hall commutation sensor board/Temperature sensor board/ Smaller rotor inner centering diameter/

KMF 125 03

Frame Size: 125.2 mm
Length: 57.5 mm
Motor Voltage: 54 to 72 VDC
Rated Torque: 6.30 Nm
Rated Speed: 1,800 rpm
Rated Current: 19.9 to 2.9 A
Output Power: 1,188 W
Options: Hall commutation sensor board/Temperature sensor board/ Smaller rotor inner centering diameter/

Features and
Benefits

WINDING SELECTION FOR OTHER VOLTAGES
RATED TORQUE 0.24 TO 6.7 NM
HIGH TORQUE-TO-WEIGHT RATIO
EXCELLENT EFFICIENCY FROM 83% UP TO 90% OVER A WIDE
RANGE AROUND THE NOMINAL WORKING POINT

Applications

AUTONOMOUS GROUND VEHICLES (AGVs)
ROBOTICS (arms, joints)
HANDHELD HYDRAULIC POWER TOOLS
MATERIAL HANDLING SYSTEMS
MEDICAL EQUIPMENT
ROTARY ACTUATORS
GIMBALS

Markets and
Industries

MEDICAL TECHNOLOGY
ROBOTICS
AUTOMATION
LOGISTICS 4.0
AND MANY MORE
