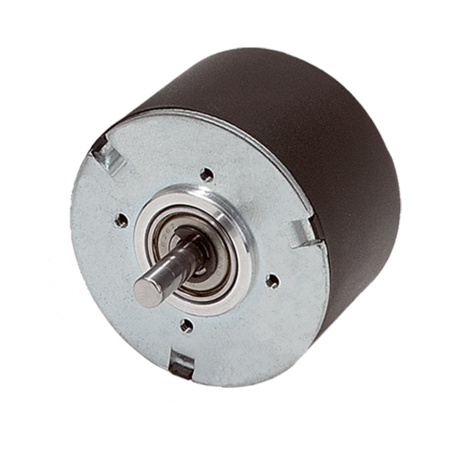

KinetiMax 54 EB Series
Brushless DC Motor with Integal Drive
| Frame Size: | 54 mm |
|---|---|
| Length: | 30.4 / 37.25 mm |
| Motor Voltage: | 12 / 24 VDC |
| Rated Torque: | 30 / 40 mNm |
| Rated Speed: | 2,700 - 3,900 rpm |
| Rated Current: | 0.8 / 1.6 A |
| Output Power: | 10 - 16 W |
| Drive: | Integrated electronics with control input |
| Options: | Customized shaft / Customized mounting flange / Individual leads and connector configurations / winding configurations / encoder / gearbox |
Features and
Benefits
2 WINDING OPTIONS
INTEGRATED SPEED CONTROL LOOP WITH A SPEED SET INPUT to adjust
motor speed from 300 to 4000 RPM
THERMAL OVERLOAD PROTECTION WITH AUTOMATIC RECOVERY
ROTATION DIRECTION INPUT (CW/CCW)
SPEED OUTPUT FOR SPEED SENSING (36 pulses per rev)
REVERSE SUPPLY VOLTAGE PROTECTION
LOW EMI – complies with EN 55014-1/2, 61000-6-1/3
Applications
SMALL MEMBRANE PUMPS
PERISTALTIC PUMPS
HIGH PERFORMANCE FANS
HIGH PERFORMANCE BLOWER
MEDICAL-DEVICES
AND MANY MORE
Markets and
Industries
MEDICAL TECHNOLOGY
LABORATORY TECHNOLOGY
INDUSTRIAL DEVICES
HEATING & COOLING
MEDICAL VENTILATION & RESPIRATION
AND MANY MORE
