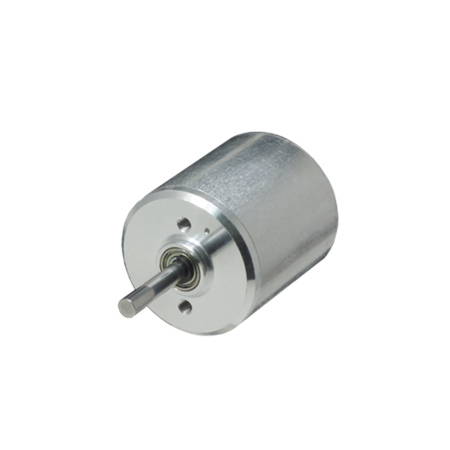

KinetiMax 24 EB Series
Brushless DC Motor with Integal Drive
| Frame Size: | 24 mm |
|---|---|
| Length: | 26.3 mm |
| Motor Voltage: | 6 / 12 / 24 VDC |
| Rated Torque: | 5 / 6 mNm |
| Rated Speed: | 4,250 rpm |
| Rated Current: | 0.23 - 0.75 A |
| Output Power: | 2.2 / 2.7 W |
| Drive: | Integrated electronics with control input |
| Options: | Customized shaft / Customized mounting flange / Individual leads and connector configurations / winding configurations / gearbox |
Features and
Benefits
3 WINDING OPTIONS
2-WIRE VERSION IS AS SIMPLE TO CONTROL AS A DC MOTOR (needing only a DC voltage to operate)
PROTECTION AGAINST VOLTAGE REVERSAL
LOW EMI – complies with EN 55014-1/2, 61000-6-1/3
IP30 LEVEL PROTECTION SEALING
5-WIRE SPEED CONTROL VERSION
TACHOMETER OUTPUT (18 pulses per rev) FOR SPEED MONITORING
INPUT TO ENABLE DIRECTION REVERSAL
Applications
SMALL PUMPS
LASER SCANNERS
SMALL HIGH PERFORMANCE FANS
SMALL HIGH PERFOMANCE BLOWERS
MEDICAL EQUIPMENT
AND MANY MORE
Markets and
Industries
MEDICAL TECHNOLOGY
LABORATORY TECHNOLOGY
INDUSTRIAL DEVICES
HEATING & COOLING
AND MANY MORE
