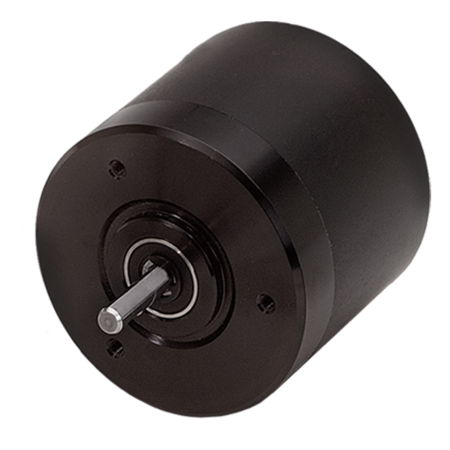

KinetiMax 68 EB Series
Brushless DC Motor with Integal Drive
| Frame Size: | 68 mm |
|---|---|
| Length: | 49.1 / 62.1 mm |
| Motor Voltage: | 24 VDC |
| Rated Torque: | 70 - 170 mNm |
| Rated Speed: | 2,400 - 3,750 rpm |
| Rated Current: | 2 / 3 A |
| Output Power: | 35 / 50 W |
| Drive: | Integrated electronics with control input |
| Options: | Customized shaft / Customized mounting flange / Individual leads and connector configurations / winding configurations / encoder / gearbox |
Features and
Benefits
ADJUSTABLE SPEED AND DIRECTION SELECTION
THERMAL OVERLOAD PROTECTION WITH AUTOMATIC RECOVERY
LOW EMI – complies with EN 55014-1/2, EN 61000-6-1/3
STANDARD IP43 PROTECTION LEVEL
OPTIONAL IP 55
MODEL 01658033 INCLUDES INTEGRAL ELECTRICAL BRAKE
Applications
MANY TYPES OF GEAR PUMPS
PERISTALTIC PUMPS
HIGH END FANS & BLOWERS
LABORATORY EQUIPMENT
MEDICAL-DEVICES
AND MANY MORE
Markets and
Industries
MEDICAL TECHNOLOGY
LABORATORY TECHNOLOGY
INDUSTRIAL DEVICES
HEATING & COOLING
MEDICAL VENTILATION & RESPIRATION
AND MANY MORE
