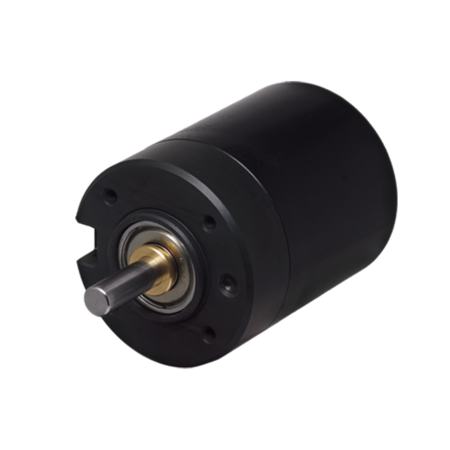

KinetiMax 42 EB Series

Brushless DC Motor with Integal Drive

Frame Size: 42 mm
Length: 53 (dual-shaft) mm
Motor Voltage: 12 / 24 VDC
Rated Torque: 65 / 70 mNm
Rated Speed: 4,300 rpm
Rated Current: 1.75 / 3.5 A
Output Power: 29 / 32 W
Drive: Integrated electronics with control input
Options: Customized shaft / Customized mounting flange / Individual leads and connector configurations / winding configurations / encoder / gearbox

Features and
Benefits

ROBUST BEARING SYSTEM
INTEGRATED SPEED CONTROL LOOP WITH A SPEED SET INPUT to adjust
motor speed from 150 to 5000 RPM
6-WIRE VERSION with tachometer output (18 pulses per rev) for
SPEED MONITORING, SPEED INPUT and DIRECTION INPUT
IP54 LEVEL PROTECTION SEALING
THERMAL OVERLOAD PROTECTION WITH AUTOMATIC RECOVERY
REVERSE SUPPLY VOLTAGE PROTECTION
LOW EMI – complies with EN 55014-1/2, 61000-6-1/3

Applications

SMALL MEMBRANE PUMPS
PERISTALTIC PUMPS
LASER SCANNERS
BLOWER-/FAN-APPLICATIONS
MEDICAL-APPLICATIONS
AND MANY MORE

Markets and
Industries

MEDICAL TECHNOLOGY
LABORATORY TECHNOLOGY
INDUSTRIAL DEVICES
HEATING & COOLING
MEDICAL VENTILATION & RESPIRATION
AND MANY MORE
