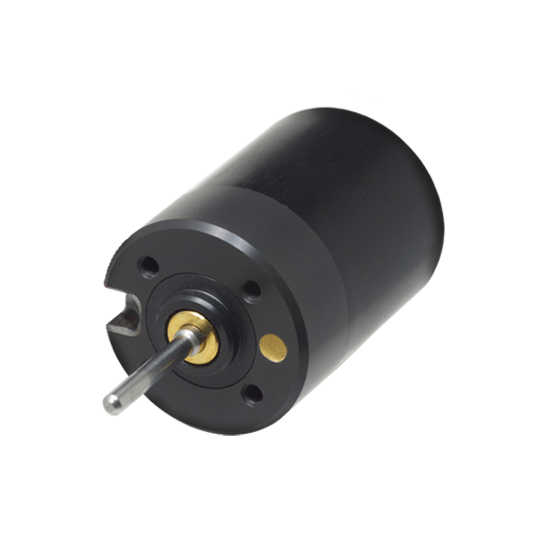

KinetiMax 32 EB Series

Brushless DC Motor with Integal Drive

Frame Size: 31.7 mm
Length: 42.3, 46.5 (dual-shaft) mm
Motor Voltage: 12 / 24 VDC
Rated Torque: 32 mNm
Rated Speed: 3,450 - 4,750 rpm
Rated Current: 0.92 / 1.42 A
Output Power: 12 / 16 W
Drive: Integrated electronics with control input
Options: Customized shaft / Customized mounting flange / Individual leads and connector configurations / winding configurations / encoder / gearbox

Features and
Benefits

2 WINDING OPTIONS
INTEGRATED SPEED CONTROL LOOP
2-WIRE VERSION IS AS SIMPLE TO CONTROL AS A DC MOTOR (needing only a DC voltage to operate)
FOUR-WIRE and FIVE-WIRE VERSIONS for speed monitoring and/or direct input
IP54 LEVEL PROTECTION SEALING
THERMAL OVERLOAD PROTECTION WITH AUTOMATIC RECOVERY
REVERSE SUPPLY VOLTAGE PROTECTION
LOW EMI – complies with EN 55014-1/2, 61000-6-1/3

Applications

SMALL MEMBRANE PUMPS
PERISTALTIC PUMPS
LASER SCANNERS
BLOWER-/FAN-APPLICATIONS
MEDICAL-APPLICATIONS
AND MANY MORE

Markets and
Industries

MEDICAL TECHNOLOGY
LABORATORY TECHNOLOGY
INDUSTRIAL DEVICES
HEATING & COOLING
MEDICAL VENTILATION & RESPIRATION
AND MANY MORE
